3Impresión D versus mecanizado CNC

3La impresión D es una tecnología de rápido crecimiento con muchas ventajas sobre los métodos de fabricación tradicionales.. Sin embargo tiene sus problemas, incluyendo que la impresión 3D no se puede utilizar de manera efectiva para la producción en masa, y está limitado en velocidad y accesibilidad. Otra técnica de fabricación para producción baja a media es el mecanizado CNC. (control numérico por computadora), una técnica sustractiva bastante común para la creación de piezas. We decided to compare the advantages and disadvantages of each method to establish where these technologies are most appropriate.

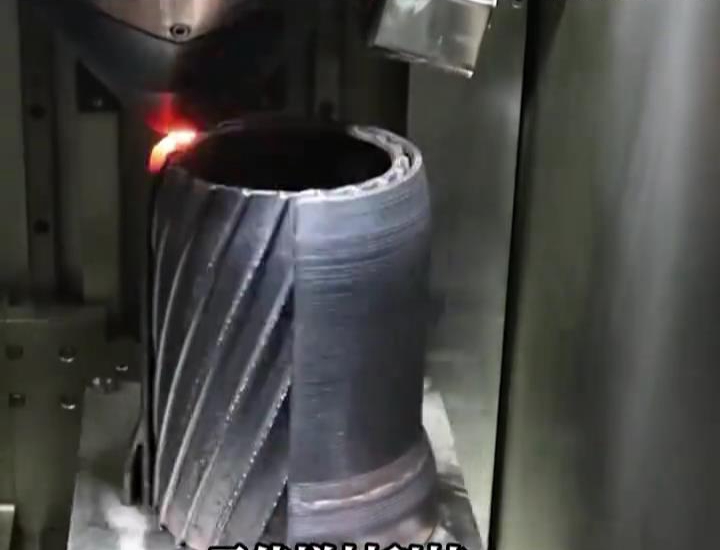

Subtractive vs Additive Manufacturing

They key difference between 3D printing and CNC machining is that 3D printing is a form of additive manufacturing, whilst CNC machining is subtractive. This means CNC machining starts with a block of material (called a blank) and cuts away material to create the finished part. To do this, cutters and spinning tools are used to shape the piece. Some advantages of CNC machining include great dimensional accuracy as well as many compatible materials, including wood, ¿Cuál es el propósito de moleteado, y, plástica.

3impresión D, or additive manufacturing, involves parts being created layer-by-layer using materials such as plastic filaments (FDM), resins (SLA/DLP), and plastic or metal powders (SLS/DMLS/SLM). Using a source of energy such as a laser or heated extruder, layers of these materials are solidified to form the finished part. Advantages of 3D printing include its freedom of shape, applications in many sectors, exactitud, velocidad, and ability to cut costs and weight in parts.

There are however several machines that have sought to combine these two forms of manufacturing in one. Most notable of these, the ZMorph 2.0 SX, is marketed as a CNC mill that also functions as a 3D printer. This includes a CNC mill with 3 axes as well as a print head due to its interchangeable heads. Torneado CNC de China mecanizado, several companies have recently closed successful Kickstarter campaigns with these combined machines, such as Mooz’s 3-in-1 3D printer.

Materiales

Both 3D printing and CNC machining are compatible with a wide variety of materials, including both plastics and metals. 3D printing however is more focused on plastics overall, though this is changing rapidly as better and more affordable ways of 3D printing metal are being developed by manufacturers such as 3D Systems, Arcam, Desktop Metal, and Markforged.

The most commonly used plastics used in CNC include ABS, Nylon (PA66), Policarbonato (ordenador personal), Acrílico (PMMA), polipropileno (PÁGINAS), POM, and PEEK. A very commonly used metal in CNC machining is Aluminum, used by prototyping companies to create high-quality prototypes in a variety of industries. Aluminum is recyclable, has good protective qualities, and can create effective prototypes for machining. Other commonly used metals include stainless steel, magnesium alloy, zinc alloy titanium, and brass.

Aluminum is a commonly used metal with CNC due to its good mechanical properties.

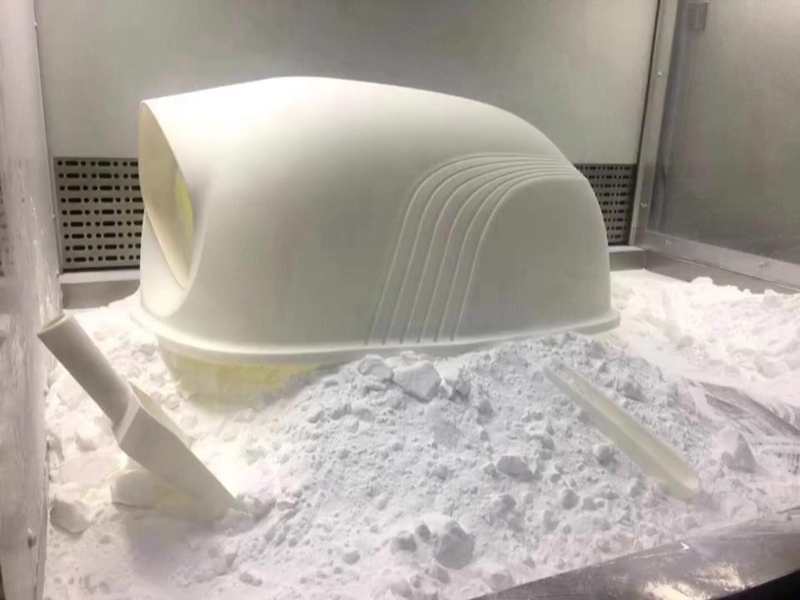

In 3D printing, commonly used thermoplastics include ABS, PLA, Nylon, and ULTEM, but also photo-polymers such as wax, calcinable or biocompatible resins. Some niche 3D printers also allow for the printing of parts in sand, cerámica, and even living materials. The most common metals used in 3D printing include aluminum, acero inoxidable, titanio, e inconel. It is also worth noting that to 3D print metal, expensive ($100,000+) industrial machines are required. Some materials such as superalloys or TPU (flexible material) cannot be created with CNC, so must be used with 3D printing or rapid tooling technology.

Some plastics are available to be 3D printed and CNC milled.

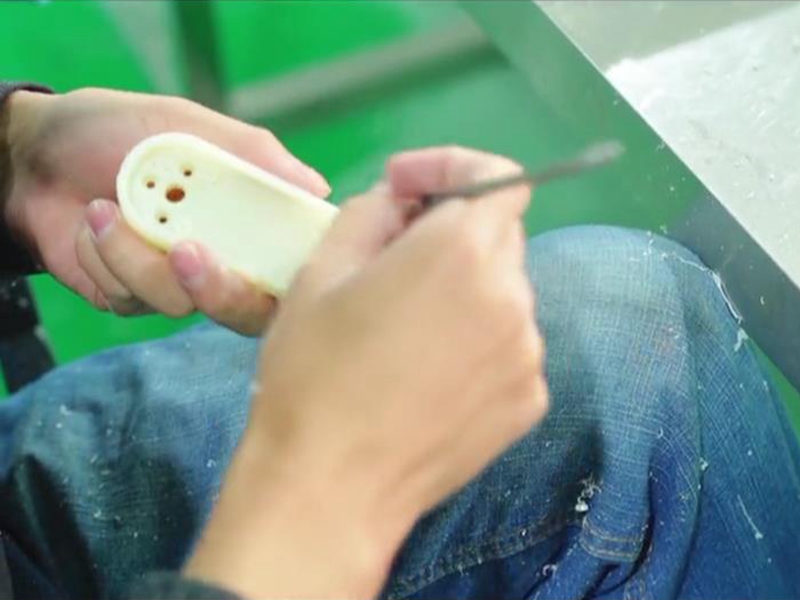

Ease of Use

3D printing is known to be simpler to use than CNC machining. This is because once the file is prepared, you just need to choose the part orientation, fill it, and support it if needed. Then once printing has commenced, no supervisor is required and the printer can be left until the part is finished. Post-processing requirements depend on the technology.

Sin embargo, CNC machining is a far more labor-intensive process. A skilled operator is required to choose between different tools, rotation speeds of tools, the cutting path, and any repositioning of the material the part is being created from. There are also post-processing techniques which can require more time.

CNC requires an operator whereas 3D printing can be left alone when printing.

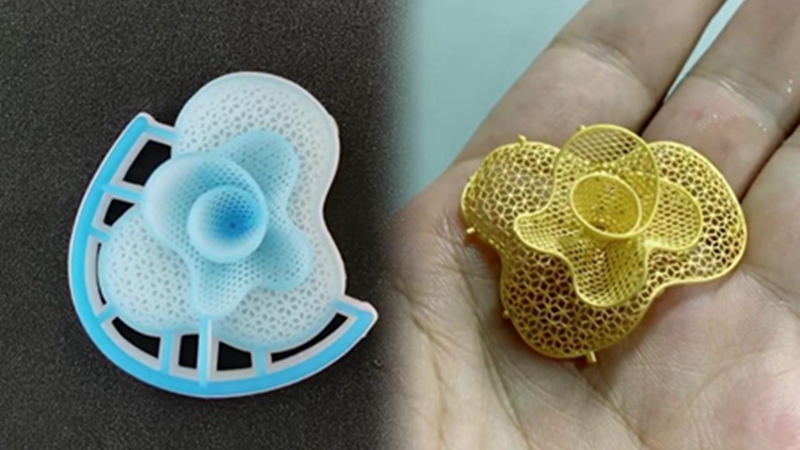

Exactitud, Size Limitations & Geometric Complexity

Though there are several 3D printing technologies, we have chosen to compare CNC machining with SLS, industrial (not desktop) FDM, and DMLS metal 3D printing. In terms of tolerance, CNC machining is superior to all 3D printing processes, even DMLS. Sin embargo, with minimum layer thicknesses, the superiority is not so profound and is not as precise as DMLS.

Powder bed fusion 3D printing processes such as SLS and DMLS are limited in their build volume, sin embargo. Even technologies with larger build volumes such as FDM cannot compete with CNC in terms of a maximum size of parts.

3D printing is well-known for its advantages in creating parts with high geometric complexity. Though supports are required for some technologies, 3D printing can create parts with geometries that no traditional manufacturing method can replicate. Technologies such as SLS and Multi Jet Fusion by HP can even do this without any support structures.

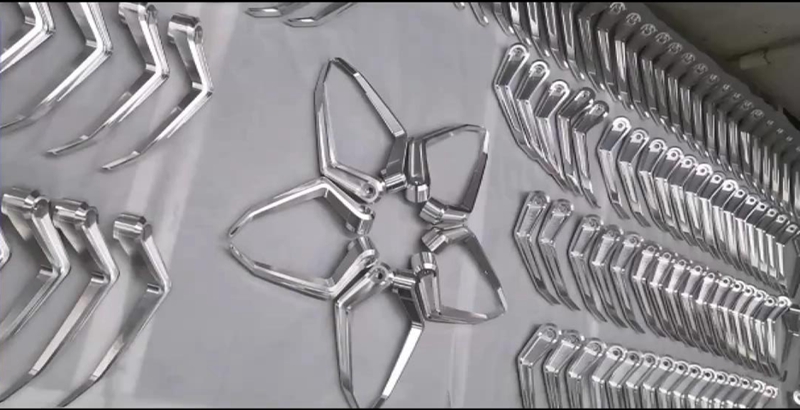

Cost

Though on average 3D printing is cheaper, costs depend on how many parts are required and how quickly you need them. For larger quantities (higher double digits to 100s) CNC is likely to be more appropriate. For low volumes, 3D printing is more appropriate and lower cost. 3D printing is also more appropriate if you need your prototypes or parts very quickly. There are additional factors however that make comparing the two technologies more difficult. These include materials varying in cost (from cheap materials like ABS to materials that can cost $500/kg like PEEK), and repairing and changing machinery (such as CNC heads).

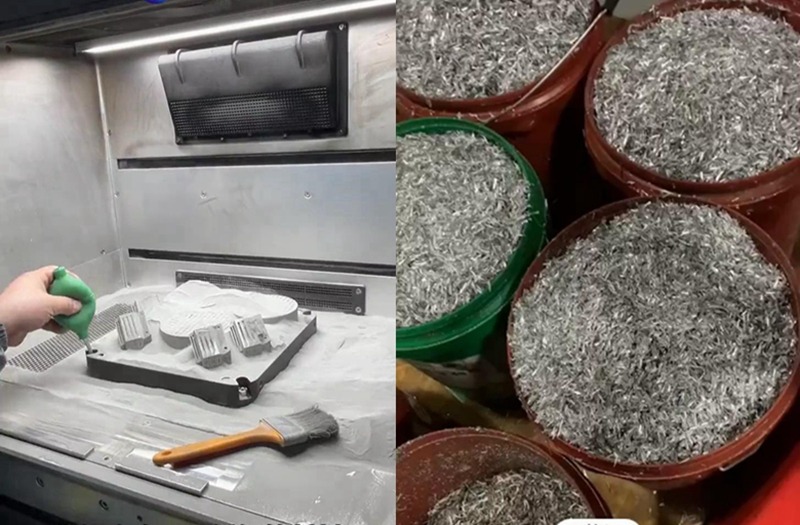

Environmentally Friendly

Since CNC involves cutting material away from an original block, there is always going to be a mess afterward. These pieces of material need to be cleaned afterward and disposed of, which isn’t required from 3D printing. Since additive manufacturing forms an object on the build platform from material fed into the machine, there is no mess except supports (if used). This makes 3D printing the more ethical of the two methods as there is less unused waste.

Conclusión

Overall to conclude, there is no perfect, one-size-fits-all technique. Though both methods are very competent and useful technologies, the most appropriate one will depend on the material, geometric complexity, manufacturing volume, y presupuesto. To find out which is best for your particular job, we advise you to approach a local or international service and ask for their advice. If attempting to manufacture in-house, reflect on the machinery available to you and decide whether it is appropriate for the job at hand.
